300W LED Explosion Proof Flood Light Emergency Battery Backup 120min ATEX Egress Safety IP66 Die-Cast Aluminum ADC12
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | গুয়াংডং, চীন |
| পরিচিতিমুলক নাম: | ECER |
| সাক্ষ্যদান: | ATEX II 2G Ex d IIC T6 Gb, CE, ISO 9001:2015 |
| মডেল নম্বার: | EPFL-300W-EMR |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 10 পিসি |
|---|---|
| মূল্য: | আলোচনা সাপেক্ষে |
| প্যাকেজিং বিবরণ: | বক্স প্যাকেজ + বুদ্বুদ বা কাস্টমাইজড হিসাবে |
| ডেলিভারি সময়: | 10-15 দিন বা নিশ্চিত করুন |
| পরিশোধের শর্ত: | টি/টি, ওয়েস্টার্ন ইউনিয়ন |
| যোগানের ক্ষমতা: | 5000 পিসি/মাস |
|
বিস্তারিত তথ্য |
|||
| শক্তি: | 300W | আলোকিত প্রবাহ: | 33000lm |
|---|---|---|---|
| কার্যকারিতা: | 110lm/ডাব্লু | মরীচি কোণ: | 120° |
| রঙের তাপমাত্রা: | 5000 কে | LED চিপ: | ব্রিজলাক্স এসএমডি 3030 |
| আইপি রেটিং: | IP66 | হাউজিং উপাদান: | ডাই-কাস্ট অ্যালুমিনিয়াম ADC12 |
| অপারেটিং তাপমাত্রা: | -20 ° C থেকে +50 ° C | সাক্ষ্যদান: | ATEX II 2G Ex d IIC T6 Gb |
| জীবনকাল: | ≥50,000 ঘন্টা L70 | ওয়ারেন্টি: | 5 বছর |
| বিশেষভাবে তুলে ধরা: | 300W explosion proof LED flood light,ATEX emergency battery backup flood light,IP66 die-cast aluminum safety light |
||
পণ্যের বর্ণনা

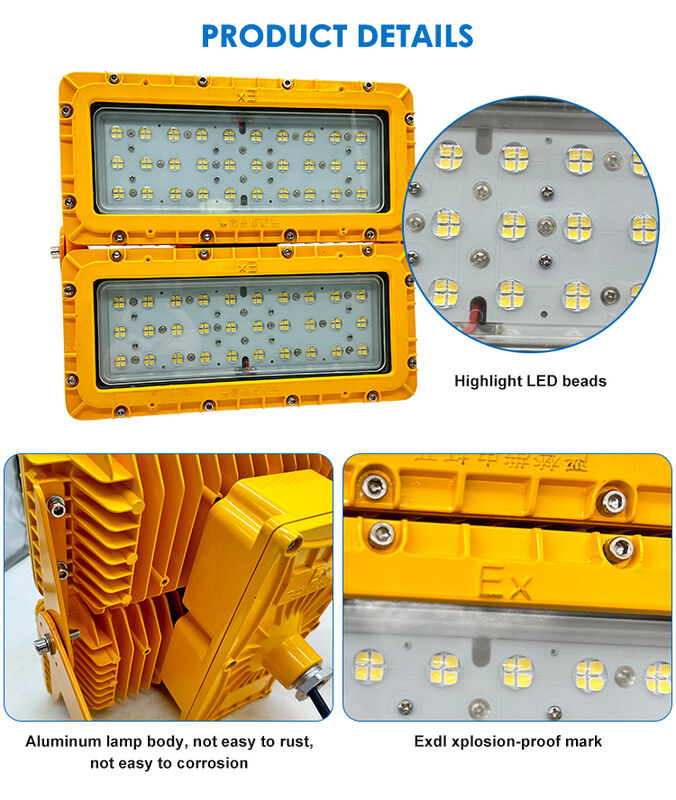

300W LED Explosion Proof Flood Light - Emergency Battery Backup 120min ATEX Egress Safety
The EPFL-300W-EMR is a 300W LED explosion proof flood light delivering 33000lm luminous flux with 110lm/W efficiency. ATEX II 2G Ex d IIC T6 Gb certified with IP66 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 for demanding classified area applications.
Key Features
- 300W High-Efficiency Output - 33000lm total luminous flux at 110lm/W, replacing traditional HID fixtures with superior energy performance
- ATEX II 2G Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- Integrated 120-Minute Battery - LiFePO4 emergency module with automatic <0.2s failover, compliant with IEC 60598-2-22, self-test functionality with LED status indicator
- IP66 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 300W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Emergency egress routes, safety showers, muster points, fire equipment stations, and escape corridors in refineries:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-300W-EMR |
|---|---|
| Power Consumption | 300W |
| Luminous Flux | 33000lm |
| Efficacy | 110lm/W |
| Beam Angle | 120° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 |
| Operating Temperature | -20°C to +50°C |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-300W-EMR design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
